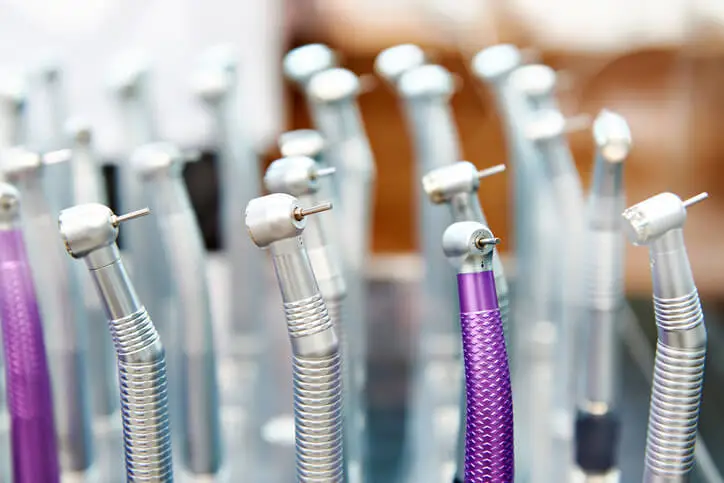

Dental Handpieces: Types and Uses

Dental handpieces are an indispensable tool in modern dentistry, serving as the cornerstone for a wide range of procedures from routine cleanings to complex oral surgeries. These devices have come a long way since their inception, evolving in design, function, and technology to meet the growing demands of precision, efficiency, and patient comfort.

History and Evolution of Dental Handpieces

The dental handpiece has its roots in rudimentary tools used centuries ago. In early civilizations, dental procedures were performed with manual tools, often causing significant discomfort and limited success.

Early Developments

• Ancient Tools: Archaeological evidence suggests the use of bow drills as early as 7000 B.C. in the Indus Valley.
• 19th Century Innovations: The 1860s saw the development of pedal powered drills. In 1871, George F. Green patented the first electric dental drill, which marked the beginning of modern dental instruments.

The Birth of the Modern Handpiece

The 20th century brought significant changes:

• 1950s: Introduction of the air-turbine handpiece by John Borden revolutionized dental care. It enabled dentists to operate at high speeds (up to 300,000 RPM), reducing treatment time and improving accuracy.
• 1970s-Present: Advancements in materials, ergonomic design, and the integration of fiber optics, electric motors, and digital control systems have further refined the dental handpiece.

Classification of Dental Handpieces

Dental handpieces are more than just spinning drills—they are precision-engineered instruments designed for specific clinical applications. Understanding the classifications of dental handpieces is essential for dentists, hygienists, assistants, and laboratory technicians to make informed choices based on speed, torque, function, and procedure requirements.

In this section, we’ll explore the detailed classifications of dental handpieces based on speed, power source, and clinical application, including practical insights into when and why each type is used.

Based on Speed

Speed is one of the most critical factors when selecting a dental handpiece. The rotational speed of the bur affects cutting efficiency, heat generation, and tactile control. Dental handpieces are broadly categorized as high-speed or low-speed based on their rotational capabilities.

High-Speed Handpieces

Rotational Speed: 250,000 to 400,000 revolutions per minute (RPM)

Power Source: Typically air-turbine

Common Uses:

• Tooth preparation for fillings, crowns, bridges
• Removal of decay
• Sectioning teeth during extractions
• Smoothing and polishing restorations (with specific burs)

Key Features:

• Air Turbine Mechanism: Uses compressed air to spin the turbine, creating high rotational speed with minimal torque.
• Water Spray Coolant System: Prevents heat buildup and damage to dental pulp. Most units come with a 3- or 4-hole spray system.
• Fiber Optic Illumination: Enhances visibility in the oral cavity.
• Push-Button Chuck System: Allows quick and secure bur changes.
• Lightweight Design: Minimizes operator fatigue, especially in long procedures.

Advantages:

• Fast cutting action
• Minimal pressure required
• Enhanced visibility with fiber optics
• Shorter patient chair time

Limitations:

• Lower torque, which may result in reduced performance when cutting through dense or restorative materials
• More sensitive to pressure—excess force can slow or stop the turbine
• Not ideal for slow, controlled movements

Low-Speed Handpieces

Rotational Speed: 5,000 to 40,000 RPM (up to 80,000 RPM with some micromotors)

Power Source: Air motor or electric motor

Common Uses:

• Polishing with prophy cups and brushes
• Caries excavation
• Finishing and trimming restorations
• Adjusting prostheses (crowns, bridges, dentures)
• Lab work (when used outside the oral cavity)
• Endodontic applications (with speed/torque control)

Key Features:

• Straight or Contra-Angle Heads: Contra-angles provide better access to posterior teeth.
• Latch-Type or Snap-On Bur Attachment: Provides a secure hold for polishing or cutting attachments.
• Lower Noise and Vibration: Quieter operation contributes to patient comfort and operator concentration.
• Variable Speed Control: Offers better tactile feedback and control during delicate procedures.

Advantages:

• High torque for heavy cutting or finishing tasks
• Excellent for precision work and tactile control
• Durable and versatile—many attachments are compatible
• Reduced risk of overheating tissues

Limitations:

• Slower cutting, making them unsuitable for bulk removal of hard tissue
• Heavier than air-turbine handpieces when motor-driven

Based on Power Source

The choice between air-driven and electric handpieces largely depends on practice preference, procedure type, and budget. Both technologies have their strengths and limitations.

Air-Driven Handpieces

How They Work: Air-driven handpieces rely on compressed air delivered from the dental unit to rotate the internal turbine, which in turn rotates the bur.

Applications:

• Most commonly used for general restorative procedures
• Well-suited for rapid enamel and dentin removal

Advantages:

• Lightweight and easy to handle
• More affordable
• Proven and reliable technology
• Generates less heat in the motor unit (though more in the tooth area)

Limitations:

• Inconsistent torque at varying speeds
• More susceptible to deceleration under pressure
• Shorter lifespan of internal components (bearings and turbines wear down faster)
• Louder operation compared to electric models

Electric Handpieces

How They Work: These handpieces are powered by a micromotor, often controlled digitally, and can maintain consistent torque regardless of speed or resistance.

Applications:

Ideal for procedures requiring sustained torque and speed, such as:

• Crown and bridge preparations
• Surgical applications
• Endodontic instrumentation
• Implantology

Advantages:

• Consistent torque even at low RPM
• Smoother and more precise cutting
• Quieter and more comfortable for patients
• Longer lifespan due to fewer moving air parts

Limitations:

• Heavier than air-turbine versions
• Higher initial cost and maintenance complexity
• Requires additional setup (control box, micromotor)

Based on Clinical Application

Specialization in dentistry has led to the development of task-specific handpieces designed for precision, access, and safety across different disciplines.

Surgical Handpieces

Used For:

• Oral and maxillofacial surgery
• Implant placement
• Bone cutting and sinus lifting

Key Features:

• Slow-speed, high-torque operation
• Straight design with external irrigation
• Autoclavable and corrosion-resistant
• Enhanced cooling systems to manage heat during bone drilling

Considerations:

• Requires meticulous sterilization
• Compatible with surgical-length burs and drills

Laboratory Handpieces

Used Outside the Mouth For:

• Trimming and adjusting prosthetic appliances
• Polishing and contouring crowns, dentures, aligners

Features:

• Often larger and bench-mounted
• Operates at variable speeds up to 50,000 RPM
• Compatible with wider range of burs and wheels
• Not sterilized like clinical handpieces (since they are used on non-biological materials)

Endodontic Handpieces

Used For:

• Root canal treatments
• Shaping and cleaning canals with NiTi files

Features:

• Compact head for posterior access
• Electronic torque and speed control to reduce file breakage
• Some models integrate apex locator feedback
• Can operate in reciprocating or rotary modes

Benefits:

• Increases endodontic efficiency
• Minimizes clinician fatigue and procedural errors

Prophylaxis Handpieces

Used For:

• Routine dental cleaning
• Plaque and stain removal

Characteristics:

• Lightweight and ergonomic
• Compatible with disposable or autoclavable prophy angles
• Lower speed to reduce splatter and maximize control

Special Classifications and Emerging Designs

As dental technology evolves, manufacturers are creating hybrid and highly specialized handpieces to meet unique clinical and ergonomic demands.

Cordless/Battery-Operated Handpieces

• Ideal for portability and mobile dentistry
• Eliminates hoses and improves operator freedom
• Used increasingly in hygiene, ortho, and pediatric dentistry

Smart Handpieces

• Equipped with sensors for speed, pressure, and heat
• Can interface with practice software to track usage, sterilization logs
• Provide real-time alerts for excessive force or bur wear

Mini and Pediatric Handpieces

• Smaller size for children or patients with limited oral access
• Provide better maneuverability in tight spaces

Summary Table: Types of Dental Handpieces

Components of a Dental Handpiece

Dental handpieces are sophisticated precision instruments that rely on a combination of mechanical engineering, materials science, and ergonomic design to perform consistently in demanding clinical settings. Understanding their internal and external components not only helps in using them efficiently but also in maintaining and troubleshooting issues.

This section explores the anatomy of a dental handpiece, from the head to the coupling system, and provides a comprehensive breakdown of the function and importance of each component.

The Head: The Business End of the Handpiece

The head of the dental handpiece is the part that comes into closest proximity with the patient’s oral cavity. It houses critical components like the chuck system, turbine or rotor, and bur attachment mechanism.

Chuck or Bur Retention System

The chuck is a clamping mechanism that holds the dental bur in place. There are different types:

• Friction Grip Chuck (used in high-speed handpieces):

  • Relies on a tight fit and centrifugal force to hold the bur.

    Advertisements

  • Usually incorporates a push-button system for easy bur changes.

  • Common in turbine-driven high-speed handpieces.

• Latch-Type Chuck (used in low-speed contra-angle handpieces):

  • The bur is locked into place using a latch or spring mechanism.

    Advertisements

  • Ideal for procedures requiring a secure and reusable connection, like polishing or caries removal.

• Key-Type Chuck (less common):

  • Requires a manual key to open or close the chuck.

  • Offers very secure bur retention but is less convenient.

    Advertisements

Bearings and Turbine (in Air-Driven Models)

The turbine assembly includes:

• Bearings: Allow the turbine to spin freely. Usually made from ceramic or stainless steel.
• Impeller Blades: Propel the turbine when air is forced through.
• O-Rings: Seal the turbine to prevent leaks and reduce vibration.

These components work together to achieve high RPMs. Bearings wear down over time, and regular replacement is essential for performance.

Spray Nozzles and Ports

• Water Spray Ports: Emit a fine mist of water to cool the bur and the tooth during cutting.
• Air Jets: Aid in clearing debris from the operating field.
• Multi-Port vs. Single-Port: High-end models often feature triple or quad spray systems for more efficient cooling.

Fiber Optic Lens or Bulb

Some high-speed handpieces include fiber optic systems:

• Light is transmitted through glass fibers from an external source or an integrated LED.
• Located at the head to illuminate the treatment area precisely.

The Neck: A Conduit for Precision

The neck connects the head to the body and serves as a passageway for mechanical linkages, air/water lines, and fiber optic cables.

Functions of the Neck:

• Structural Support: Allows the head to maintain proper angulation for access to difficult areas (e.g., maxillary molars).
• Flow Channel: Transports air, water, and power from the body to the head.
• Ergonomic Considerations: A well-designed neck improves access and visibility while reducing hand strain.

Straight vs. Contra-Angle Design:

• Straight Neck: Common in low-speed handpieces and lab models. Ideal for extraoral work.
• Contra-Angle Neck: Angled for intraoral use; allows better access and ergonomics in the posterior areas of the mouth.

The Body: Control Center and Grip Area

The body houses the primary control systems, mechanical transmission, and ergonomic interface of the handpiece.

Drive Mechanism

• Air-Driven Models: Use internal air channels to deliver power to the turbine.
• Electric Models: Contain micromotors or connect to external motors via gears or shafts.
• Gear Ratios (Electric): Gearing systems can increase or reduce output speed and torque (e.g., 1:5 speed-increasing attachments).

Grip and Surface Design

• Designed for comfort, hygiene, and control:

  • Textured or knurled surfaces for non-slip grip.

  • Tapered contours to accommodate natural finger positioning.

  • Autoclavable or disposable sheaths to maintain sterility.

    Advertisements

Fiber Optic Cabling

• Fiber optic bundles run from the light source (external or internal) through the body to the head.
• Must be handled carefully—breakage can dim or block light entirely.

Internal Channels and Lines

• Water Line: Carries sterile water to the head for cooling.
• Air Line: Supplies compressed air to drive the turbine or activate water spray.
• Exhaust Line: Removes spent air to prevent pressure buildup.

Coupling Mechanism: Connection and Compatibility

The coupling is the interface between the handpiece and the dental delivery unit. This connection determines power transfer, water/air supply, and in some cases, data transfer.

Fixed Coupling

• Permanently attached to the hose.
• Fewer moving parts but less flexible—must rotate the entire hose to reposition.

Swivel Coupling

• Allows 360-degree rotation of the handpiece relative to the hose.
• Reduces wrist strain and improves maneuverability.

Coupling Standards

• 2-hole, 3-hole, and 4-hole couplings: Standard in older models.
• 5-hole coupling: Adds fiber optic capability.
• ISO Coupling: Universal design that enables compatibility across brands and units.

Electric Motor Attachments

• For electric handpieces, the coupling includes electronic data and power transfer.
• Often equipped with plug-and-play systems, allowing different heads to be attached (e.g., 1:5, 1:1, 10:1 gear ratios).

Additional Features in Modern Handpieces

Advanced dental handpieces may integrate extra components to enhance functionality and safety.

Anti-Retraction Valves

• Prevent suck-back of contaminated fluids into the handpiece and dental unit lines.
• Critical for infection control.

Noise Reduction Technology

• High-speed turbines are notorious for their high-pitched sound.
• Advanced models include sound-dampening designs to reduce anxiety and improve patient experience.

Auto-Chuck Wear Indicators

• High-end models include wear indicators to show when the chuck is losing grip strength.
• Alerts the user when it’s time to replace internal components.

Color Coding and Identification Bands

• Used in multi-handpiece setups to differentiate by speed, function, or torque rating.
• Improves workflow and reduces the risk of using the wrong tool.

Materials Used in Handpiece Construction

Modern dental handpieces must withstand high stress, heat, chemical exposure, and repeated sterilization. As such, they are built using durable and biocompatible materials.

Common Materials:

• Stainless Steel: Strong, corrosion-resistant; used in many mid-range models.
• Titanium: Lightweight, durable, and biocompatible; used in premium models for better ergonomics.
• Ceramic Bearings: Longer-lasting and smoother operation compared to metal bearings.
• Autoclavable Plastics: Used for fiber optic covers, grips, or outer casings.

Surface Coatings:

• Anodized Finishes: Improve scratch resistance and aesthetics.
• Antimicrobial Coatings: Help reduce bacterial growth on surfaces.

Burs and Attachments

Dental handpieces are only as effective as the tools they drive. Burs and attachments are the cutting, grinding, and polishing interfaces between the handpiece and the patient’s tooth or restoration. The choice of bur or attachment affects procedural efficiency, clinical outcomes, and patient comfort.

In this section, we will explore the various types of burs, their materials and shapes, how they attach to different handpieces, and specialized attachments used in different dental disciplines.

Introduction to Dental Burs

Dental burs are rotary instruments used in conjunction with dental handpieces to:

• Cut tooth enamel and dentin
• Remove decay
• Shape cavities and crowns
• Trim and polish restorations

They are available in various sizes, shapes, and materials tailored for specific procedures and outcomes.

Classification of Dental Burs

Dental burs are classified based on their material, shape, shank type, and grit or blade configuration.

Based on Material

Each bur material has its specific advantages depending on hardness, cutting ability, and durability.

a) Diamond Burs

• Made by bonding diamond grit to a metal shaft using electroplating.
• Used for cutting hard materials such as enamel, ceramic, and zirconia.
• Available in different grit sizes (coarse to ultra-fine) for various stages of tooth preparation.

Applications:

• Crown and veneer preparation
• Polishing composite restorations
• Finishing ceramic materials

b) Carbide Burs

• Composed of tungsten carbide, a very hard metal compound.
• Cutting edges are machined into the bur head, giving precise cutting capabilities.

Applications:

• Cavity and crown preparation
• Removal of amalgam or composite fillings
• Sectioning teeth during extractions

c) Steel Burs

• Made from stainless steel.
• Softer than carbide; used mostly for soft tissues and pediatric dentistry.

Applications:

• Caries removal in deciduous teeth
• Trimming soft acrylic materials
• Less common in adult permanent teeth due to low durability

d) Ceramic Burs

• Used for polishing and finishing, especially zirconia and porcelain.
• Highly biocompatible and non-corrosive.

e) Zirconia Burs

• Specialized burs for use with high-strength ceramic restorations.
• Require high torque, usually used with electric handpieces.

Based on Shape

The head shape determines the function of the bur. Below are common shapes and their clinical applications:

Most practitioners use a combination of shapes to carry out multi-stage procedures effectively.

Based on Grit Size (for Diamond Burs)

Diamond burs are graded by grit size:

• Coarse (100–125 microns): Fast reduction, rough finish
• Medium (80–100 microns): Standard crown prep
• Fine (40–60 microns): Smoothing and refining
• Ultra-fine (20–40 microns): Polishing ceramics and enamel

Understanding grit size is essential for efficient prep while minimizing trauma to surrounding tissues.

Bur Shank Types and Attachment Mechanisms

Different types of dental handpieces require specific bur shank types for compatibility and optimal performance.

Friction Grip (FG) Burs

• Used with high-speed handpieces.
• Slim, smooth shank that fits tightly into a friction-lock chuck.
• Common in cavity prep, crown reduction, and surgical applications.

Latch-Type (RA) Burs

• Used with contra-angle low-speed handpieces.
• Have a notch near the end that “latches” into the chuck.
• Ideal for polishing, caries removal, and finishing restorations.

Straight Handpiece (HP) Burs

• Longer shanks for use in laboratory handpieces or surgical straight handpieces.
• Used for lab work, adjusting dentures, trimming acrylics.

Specialized Attachments and Prophy Angles

Handpieces can be adapted using various attachments that enhance their versatility for hygiene, restorative, and lab procedures.

Prophylaxis Angles (Prophy Angles)

Used with low-speed handpieces to perform cleaning and polishing:

• Disposable (single-use): Minimize cross-contamination.
• Reusable (autoclavable): Cost-effective over time.
• Cup or Brush Types: Polishing rubber cups for smooth surfaces, bristle brushes for removing stains.

Endodontic Rotary Attachments

Specialized contra-angle heads:

• Designed to hold NiTi rotary files.
• Feature torque control and auto-reverse in advanced models.
• Often integrated with apex locators and motorized systems.

Surgical and Lab Attachments

• Long, straight burs for bone sectioning or prosthesis trimming.
• Diamond-coated discs or wheels for adjusting ceramic materials.
• Used outside the mouth or in surgical environments.

Snap-On and Screw-On Systems

• Some attachments use a snap-on connection for prophy cups or brushes.
• Screw-on systems offer tighter retention, typically used in hygiene tools or finishing kits.

Bur Maintenance and Safety

Proper bur handling is crucial for operator safety, patient comfort, and clinical outcomes.

Sterilization

• Single-use burs should be discarded after one procedure.
• Reusable burs must be ultrasonically cleaned and autoclaved.
• Avoid overloading sterilization cassettes to maintain effectiveness.

Bur Wear

• Dull burs increase heat and reduce cutting efficiency.

  Advertisements

• Always inspect for:

  • Chipped blades

  • Bent shanks

  • Worn diamond grit

    Advertisements

Bur Breakage Prevention

• Use correct bur for the intended handpiece and procedure.
• Avoid applying excessive pressure.
• Replace burs regularly as part of clinical best practices.

Advances in Bur Technology

Recent innovations have improved the durability and precision of dental burs:

• Multi-layer Diamond Burs: Offer longer cutting life with reduced clogging.
• Color-Coded Systems: Help identify grit and function quickly.
• Nano-Diamond Coatings: Increase abrasion resistance and cutting efficiency.
• Laser-Welded Shanks: Enhance structural integrity, reducing breakage risk.
• Hybrid Finishing Burs: Combine abrasive and polishing functions in a single tool.

Maintenance and Sterilization

Dental handpieces are precision-engineered devices subjected to extreme mechanical forces, heat, moisture, and microbial exposure during use. To ensure their optimal performance, safety, and longevity, routine maintenance and proper sterilization are non-negotiable.

Effective handpiece maintenance is not just about extending equipment life—it’s also a core aspect of infection control and compliance with health regulations. Improper care can lead to equipment failure, cross-contamination, and compromised patient outcomes.

This section explores the best practices for cleaning, lubricating, sterilizing, storing, and troubleshooting dental handpieces, while highlighting relevant regulatory guidelines.

Importance of Handpiece Maintenance

Why Maintenance Matters:

• Preserves Performance: Prevents turbine slowdowns, overheating, or vibrations.
• Ensures Safety: Reduces risk of internal contamination and transmission of infectious agents.
• Meets Compliance: Aligns with CDC, OSHA, and manufacturer standards.
• Protects Investment: Extends the lifespan of high-cost equipment.

Poor maintenance practices are the leading cause of handpiece failure, accounting for avoidable repair costs and procedural delays.

Daily Handpiece Care Workflow

A structured, step-by-step protocol should be followed after every patient use to clean and sterilize the handpiece safely.

Step 1: Pre-Cleaning

Immediately after use:

• Run the handpiece for 20–30 seconds to purge internal air and water lines.
• Wipe the exterior with a disinfectant wipe or gauze soaked in an approved solution.
• Remove visible debris—avoid immersion in chemical disinfectants unless specified.

Step 2: Disassembly

• Detach the handpiece from the hose or coupling.
• Remove any attached bur.
• If applicable, disassemble internal components like the head cap (per manufacturer’s instructions).

Step 3: Cleaning

Use an ultrasonic cleaner or manual brushing with a mild detergent:

• Clean the head, neck, and internal passageways.
• Use specialized cleaning brushes designed for dental instruments.
• Avoid abrasive materials or over-scrubbing which can damage surfaces.

Important: Never run a handpiece under high-pressure water or use household cleaning products.

Step 4: Lubrication

Lubrication reduces friction and wear in turbines, rotors, and bearings.

• Use only manufacturer-approved lubricant.
• Apply through the dedicated port or drive-air tube, usually via a spray can or automatic maintenance unit.
• Run the handpiece briefly (10–30 seconds) to distribute lubricant evenly.
• Wipe away excess oil to prevent buildup during sterilization.

Note: Not all handpieces require lubrication. Some are “lube-free” or pre-lubricated. Always follow product-specific guidelines.

Sterilization Procedures

Proper sterilization is essential to eliminate microbial contaminants, including bloodborne pathogens, viruses, and bacterial spores.

Autoclaving (Steam Sterilization)

The gold standard for sterilizing dental handpieces.

• Temperature: 121°C (250°F) for 30 minutes, or 134°C (273°F) for 3–4 minutes
• Pressure: 15–30 psi, depending on cycle
• Method: Use Class B vacuum autoclaves or gravity displacement units
• Packaging: Place in sterilization pouches with chemical indicators

Precautions:

• Never exceed temperature or cycle time limits—risk of component deformation.
• Do not overload the chamber; leave room for steam circulation.
• Ensure proper drying to avoid rust and corrosion.

Chemical Vapor Sterilization

• Uses formaldehyde and alcohol under pressure and heat.
• Lower corrosion risk, suitable for some sensitive instruments.
• Less common due to odor, ventilation needs, and chemical handling precautions.

Dry Heat Sterilization

• Requires temperatures up to 160–190°C for 1–2 hours.
• Suitable for metal components but not recommended for handpieces with plastic or rubber parts.
• Longer cycle time makes it less efficient.

Cold Sterilization (Chemical Immersion)

Not recommended for dental handpieces:

• Surface-only disinfection; does not sterilize internal components.
• May damage turbine, bearings, and optics.
• Only used when steam sterilization is not an option and with FDA-cleared products.

Post-Sterilization Handling

Once sterilization is complete:

• Let handpieces cool completely before handling.
• Check pouches for signs of wetness—wet packs are prone to contamination.
• Store in a clean, dry, closed cabinet.
• Avoid stacking heavy items on sterilized instruments.

Handpieces should only be removed from their pouches immediately before use to prevent contamination.

Weekly and Monthly Maintenance Tasks

Weekly

• Inspect turbines for unusual noise, vibration, or loss of torque.
• Test fiber optics for brightness and alignment.
• Flush water lines using a disinfectant solution.
• Clean air filters on maintenance units and compressors.

Monthly

• Check chucking mechanism wear and bur retention strength.
• Review torque calibration (especially on electric models).
• Inspect O-rings and replace worn or dried seals.
• Document maintenance in a log for tracking and compliance.

Common Handpiece Maintenance Issues and Troubleshooting

Automatic Handpiece Maintenance Systems

Modern dental offices often use automated units to clean, lubricate, and purge handpieces before sterilization.

Advantages:

• Consistent performance
• Time-saving
• Reduces human error
• Validated protocols for compliance

Limitations:

• Higher initial investment
• Must still follow sterilization steps

Popular systems include KaVo QUATTROcare, W&H Assistina, and NSK iCare—each compatible with specific brands and models.

Manufacturer and Regulatory Guidelines

Manufacturer Instructions

Each handpiece comes with an IFU (Instructions for Use) detailing:

• Cleaning agents
• Lubrication points
• Maximum sterilization cycles
• Component lifespan

Failure to follow IFUs may void warranties or cause premature failure.

Regulatory Standards

• CDC Guidelines (U.S.): Require heat sterilization of all high-speed and low-speed handpieces between patients.
• OSHA and ADA: Emphasize written maintenance protocols and training for staff.
• ISO 17664: Governs cleaning, disinfection, and sterilization processes for reusable medical devices.

Summary Checklist: Daily Maintenance Protocol

✅ Remove handpiece and bur
✅ Flush internal air/water lines
✅ Clean external surfaces
✅ Lubricate according to IFU
✅ Run handpiece to distribute oil
✅ Autoclave in sterile pouch
✅ Inspect after cooling
✅ Store in sterile environment

Ergonomics and Safety

Dental handpieces are used for extended periods throughout a clinician’s day. Their ergonomic design and built-in safety features not only affect the quality of care delivered but also play a critical role in preventing occupational injuries and minimizing risks to patients.

As dentistry evolves to meet higher standards of efficiency and comfort, handpiece design is increasingly influenced by human factors engineering. This section explores in detail the ergonomic principles behind modern handpieces, the safety systems that protect patients and practitioners, and the long-term benefits of ergonomic investments.

Ergonomics in Dental Handpieces

Ergonomics is the science of designing tools and workspaces that fit the human body, reduce fatigue, and improve performance. In dentistry, poor ergonomics can lead to musculoskeletal disorders (MSDs), reduced productivity, and early career burnout.

The Importance of Ergonomic Design

According to the American Dental Association, over 65% of dental professionals experience work-related musculoskeletal issues, particularly in the neck, shoulders, wrists, and back. Handpieces, being used for intricate work in confined spaces, can either aggravate or alleviate these risks depending on their design.

Key Ergonomic Features in Modern Handpieces

Lightweight Construction

• Modern handpieces are made with titanium alloys or high-grade aluminum, reducing hand and wrist fatigue.
• Air-turbine models are typically lighter than electric counterparts but may lack consistent torque.

Balanced Weight Distribution

• The center of gravity is carefully calibrated so the handpiece does not tip forward or strain the wrist.
• Swivel-type couplings and shorter heads contribute to balance.

Tapered and Contoured Grips

• Textured or rubberized grips help reduce slippage and allow relaxed finger pressure.
• Tapered contours accommodate a natural finger rest, preventing overgripping and repetitive strain.

Smaller Head Size

• Compact heads improve access to posterior teeth and allow better visibility.
• Reduces need for awkward hand positions that cause wrist extension or hyperflexion.

Noise Reduction

• High-frequency turbine noise contributes to auditory stress for both patient and operator.
• Many high-end models feature internal dampening systems or sound-deadening materials.
• Quieter operation not only enhances comfort but also reduces cognitive fatigue.

Reduced Vibration

• Excessive vibration can cause operator fatigue and impact cutting precision.
• Quality bearings and balanced turbines reduce mechanical chatter.
• Lower vibration also minimizes patient discomfort and post-operative sensitivity.

Ergonomic Techniques for Clinicians

Even the most advanced handpiece can cause strain if not used with proper technique. Dentists and hygienists should:

• Use a pen grasp with neutral wrist positioning.
• Position the patient correctly to minimize awkward reach or excessive flexion.
• Switch hands or positions during long procedures to balance muscle load.
• Use finger rests (fulcrums) to stabilize hand movements.
• Incorporate magnification (e.g., loupes) to improve posture and reduce neck strain.

Safety Features in Dental Handpieces

Beyond ergonomics, dental handpieces incorporate numerous patient and operator safety features, many of which are now industry standards due to updated infection control protocols and legal liability concerns.

Patient Safety Enhancements

Anti-Retraction Valves

• Prevent oral fluids from being drawn back into the handpiece or dental unit lines.
• Reduces cross-contamination between patients.
• Required in many jurisdictions as part of standard infection control.

Spray Cooling Systems

• Integrated air-water spray systems cool the tooth and bur during cutting.
• Prevents thermal injury to the pulp or surrounding tissue.
• Multi-nozzle spray ensures consistent coverage and debris clearance.

Temperature Control

• Overheating during cutting can damage the pulp.
• Electric handpieces are often equipped with heat-sensing systems or efficient internal cooling to regulate temperature.

Smooth Finishing and Burr-Free Surfaces

• Rounded edges and polished surfaces reduce the chance of lacerations or injury to soft tissues.
• Important for pediatric and geriatric patients with fragile oral mucosa.

Fiber Optic Illumination

• Provides precise intraoral lighting, reducing reliance on overhead lights.
• Enhances visual accuracy and reduces accidental tissue trauma.

Operator Safety and Infection Control

Autoclavability

• Most handpieces are made with materials that withstand repeated high-temperature sterilization.
• Components are designed to prevent steam and moisture from damaging internal mechanisms.
• Failure to use autoclavable handpieces can result in regulatory noncompliance.

Disposable Barriers and Prophy Heads

• Many low-speed hygiene attachments come with single-use prophy angles.
• Disposable handpiece sleeves or sheaths provide added protection against bloodborne pathogens.

Handpiece Identification and Color Coding

• Helps prevent accidental use of a contaminated or improperly sterilized handpiece.
• Supports standardized workflow and quick visual checks.

Occupational Health Benefits

Investing in ergonomically superior handpieces has measurable benefits:

• Reduced strain injuries: Lower incidence of carpal tunnel syndrome, tendinitis, and thoracic outlet syndrome.
• Improved focus and precision: Less discomfort allows for better procedural attention and fewer errors.
• Increased clinical longevity: Reduces the risk of early retirement due to chronic musculoskeletal pain.

Practices that adopt ergonomic instruments also report higher staff retention and greater job satisfaction, particularly among hygienists and dental assistants.

Future Trends in Ergonomics and Safety

Modern dental handpieces are being designed with biomechanical modeling and human factor simulations. Emerging trends include:

• Wireless handpieces to eliminate cord drag and improve range of motion.
• Adaptive grip textures that respond to hand pressure or gloves.
• Smart safety alerts that signal when excessive heat or pressure is applied.
• Built-in sterilization indicators to verify cycle completion and safety.

Ergonomics is no longer just an optional feature—it is an essential design priority in next-generation dental equipment.

Technological Innovations

Dental handpieces have undergone transformative technological evolution over the past few decades. From the introduction of air-turbine power in the mid-20th century to today’s smart, AI-enhanced, and digitally integrated models, innovation has focused on improving precision, efficiency, safety, and comfort.

In an era where patients expect faster, more comfortable treatments and clinicians demand better control, the integration of cutting-edge technology into handpieces has become essential.

This section explores the most significant recent innovations in dental handpiece technology, how they enhance clinical workflows, and what the future may hold.

Fiber Optic and LED Illumination

One of the most influential upgrades to modern dental handpieces is the integration of fiber optic lighting.

Traditional Fiber Optics

• Early models used fiber optic bundles to transmit light from an external halogen source.
• Allowed direct illumination into the oral cavity, particularly useful for posterior or shadowed areas.

LED Integration

• Newer models feature built-in LED light sources in the coupling or head of the handpiece.

• Benefits:

  • Brighter, whiter light (closer to daylight)

    Advertisements

  • Longer lifespan (up to 10,000 hours)

  • Energy efficiency with minimal heat output

  • No fiber degradation over time

Clinical Advantages:

• Improved visibility enhances diagnostic accuracy and margin detection.
• Reduces dependence on overhead lights.
• Helps maintain consistent illumination regardless of head positioning.

Electric Micromotor Systems

Electric handpieces are redefining precision in restorative and surgical dentistry.

Torque Control and Consistency

• Unlike air turbines, which lose torque under pressure, electric micromotors maintain steady torque across a broad range of speeds.

• Programmable settings allow clinicians to tailor the handpiece to the procedure:

  Advertisements

  • 1:1 gear ratio for general use

  • 1:5 speed increasing for high-speed cutting

  • 10:1 reduction for endodontics and surgery

Digital Control Panels

• Many systems now include digital touchscreens or foot-controlled settings.
• Clinicians can pre-set speed and torque ranges for specific procedures (e.g., crown prep, caries excavation, implant placement).
• Data feedback helps improve consistency and reduce errors.

Brushless Motor Technology

What Are Brushless Motors?

Brushless motors eliminate carbon brushes (which wear over time), using digital control and magnetic fields to drive the rotor.

Advantages:

• Reduced noise and vibration
• Minimal maintenance required
• Higher torque and smoother operation
• Smaller, lighter motor design

Clinical Benefits:

• Improved patient comfort
• Greater control during delicate procedures
• Longer service life and lower total cost of ownership

Brushless motors are now standard in many high-end electric systems and are especially popular in endodontics and prosthodontics.

Anti-Retraction Systems

Backflow prevention has become a regulatory and ethical requirement in modern handpieces.

How They Work

• Incorporate one-way valves or internal sealing mechanisms.
• Prevent suction of oral fluids into the handpiece and dental unit lines when the motor stops.

Infection Control Impact

• Reduces cross-contamination risk between patients.
• Enhances compliance with CDC and OSHA guidelines.
• Now required by many global regulatory authorities.

Smart Handpieces and Digital Integration

Modern handpieces are becoming part of the digital dental ecosystem, linking with diagnostic tools, patient records, and cloud platforms.

Real-Time Feedback Systems

Embedded sensors monitor:

• Torque
• Speed
• Temperature
• Bur wear

When thresholds are exceeded, the handpiece may alert the user or automatically adjust performance to avoid errors.

Bluetooth and Wireless Connectivity

• Smart handpieces can communicate wirelessly with:

  • Chairside software

  • Tablet-based control units

    Advertisements

  • Sterilization tracking systems

• Facilitates documentation, tracking of usage cycles, and predictive maintenance scheduling.

Integration with Digital Dentistry

• Handpieces can now sync with:

  • CAD/CAM systems for crown design

    Advertisements

  • Digital imaging platforms

  • Intraoral scanners and surgical guides

• Especially valuable in implantology and prosthodontics, where precision is critical.

Noise and Vibration Suppression Technology

Quieter Turbines

• Innovations in blade geometry and air channeling reduce the high-pitched “whine” common in air-driven models.

  Advertisements

• Helps reduce:

  • Patient anxiety

  • Operator fatigue

  • Auditory strain over time

    Advertisements

Vibration Dampening

• Precision balancing of rotors and bearings
• Vibration-absorbing materials in the casing
• Improves tactile sensitivity and cutting control

Advanced Spray Systems

Multi-Port Water Spray

• Handpieces now feature 3 to 5 spray nozzles surrounding the bur.
• Creates a cooling mist that efficiently covers the cutting site.

Thermostatic Regulation

Some electric models feature temperature sensors to adjust water flow or stop rotation if temperatures rise excessively.

Wireless Handpieces and Battery-Powered Models

Wireless technology is now being applied to both hygiene and general dentistry handpieces.

Battery-Operated Hygiene Handpieces

• Cord-free use for prophy and polishing
• Rechargeable units with swappable batteries
• Reduce clutter and cord drag

Full Wireless Systems (Emerging)

• Experimental models combine micromotor, lighting, and sensors into a fully wireless, handheld unit.
• Still in development, with potential for revolutionizing field dentistry and mobile clinics.

Enhanced Safety Features

Auto-Stop Functions

• Halts bur rotation if excessive pressure or sudden movement is detected
• Prevents accidental injury to soft tissues or nerves

Overheat Protection

• Shuts down the motor or triggers alarms when temperatures exceed safety thresholds
• Protects both patient tissues and handpiece internal components

Sterilization Cycle Tracking

• Some systems include RFID or barcoding to:

  • Monitor autoclave cycles

  • Flag overdue sterilization

  • Track usage logs per patient or per unit

    Advertisements

Material and Surface Innovations

Antimicrobial Coatings

• Silver ion or copper-based coatings reduce surface microbial load
• Help maintain aseptic conditions between full sterilizations

Nano-Coated Bearings and Burs

• Enhance wear resistance and reduce friction
• Improve lifespan and cutting performance

Hydrophobic and Scratch-Resistant Casings

• Make cleaning easier and extend aesthetic life
• Maintain smooth grip surface over time
