Bionator Appliance

Functional orthodontic appliances occupy a special niche in dentofacial orthopedics: they don’t just move teeth, they aim to influence the way the jaws grow and the muscles work. Among these devices, the Bionator is one of the best-known and longest-standing. If you’ve been told that you or your child might benefit from a Bionator, or you’re simply curious about how it works, this article walks you through everything you need to know: what it is, how it works, who it helps, what treatment looks like day-to-day, and what the evidence says about outcomes and limitations.

Quick note: This article is educational and not a substitute for a personalized diagnosis or treatment plan. Always follow the guidance of your orthodontist, pediatric dentist, or oral and maxillofacial specialist.

What Is a Bionator?

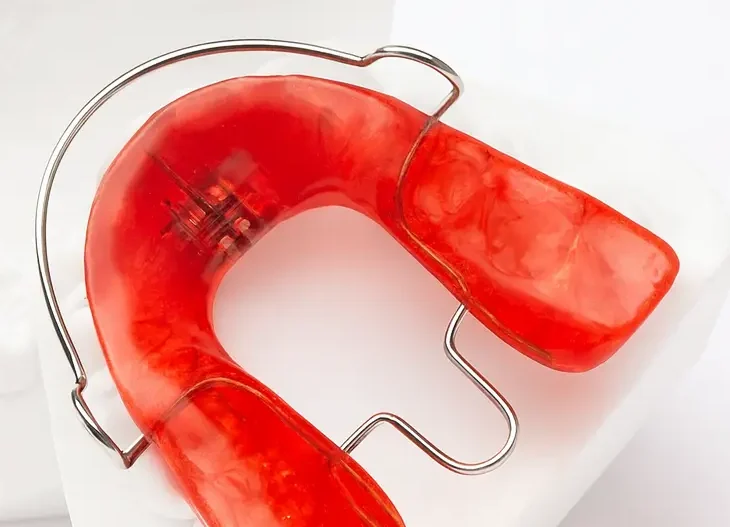

The Bionator is a removable, acrylic-and-wire functional appliance designed to posture the lower jaw forward and encourage a more balanced relationship between the maxilla (upper jaw) and mandible (lower jaw). Invented by Wilhelm Balters in the mid-20th century, it evolved from earlier monobloc devices and remains in use—often in mixed dentition (when baby and permanent teeth coexist) and early permanent dentition—especially for Class II malocclusions associated with a retrusive (back-positioned) lower jaw.

Unlike fixed braces, which are attached to the teeth and primarily exert forces to move teeth through bone, the Bionator relies on the patient’s muscles and functional patterns—breathing, swallowing, and chewing—to help guide jaw development. Many clinicians consider it part appliance, part training device.

Key Characteristics

Removable: The patient can take it in and out, which helps with hygiene and comfort but requires commitment to wear time.
Acrylic body: A single piece (monobloc) that spans upper and lower arches, maintaining the lower jaw in a forward posture.
Wire elements: Labial bows, palatal/lingual supports, and optional springs or clasps depending on the design.
Open architecture: Compared to bulkier monoblocs, the Bionator is relatively slender, allowing more natural tongue movement and speech adaptation after an initial adjustment period.

A Brief History and Design Philosophy

Dr. Wilhelm Balters developed the Bionator with a philosophy that extended beyond teeth and bones. He emphasized myofunctional balance—the harmony of muscles, airway, posture, and occlusion. This is why many Bionator designs deliberately remove acrylic in the tongue space: the tongue is encouraged to rest against the palate, lips to seal gently, and nasal breathing to become the default pattern. The appliance positions the mandible so that the muscles of mastication and the soft tissue envelope “learn” a new, more favorable equilibrium.

Balters’ thinking paralleled the broader functional orthodontic movement—Frankel regulators, Andresen activators, and Twin-Block appliances—which sought to harness growth potential rather than overpower it with purely mechanical forces. The Bionator remains distinctive for its simplicity, lower bulk compared to some regulators, and its focus on function-first therapy.

Common Bionator Variants

While labs and clinicians customize Bionators heavily, three broad variants are frequently discussed. Terminology varies slightly by region and training background, but the intent of each design is consistent:

Bionator for Class II/Division 1 (“Standard” Bionator)

Indication: Protrusive upper incisors, retrusive mandible, increased overjet.
Design features: Anterior bite plane or guiding ramp that positions the lower jaw forward; labial bow for upper incisors may be present; reduced palatal acrylic to allow tongue posture against the palate.

Bionator for Open Bite (Anterior Open Bite Bionator)

Indication: Patients with anterior open bite tendencies, often linked to oral habits or tongue thrust.
Design features: Lateral bite-blocks to encourage eruption of incisors and restrict posterior eruption; sometimes an anterior oral screen to curb aberrant perioral muscle activity.

Bionator for Class III Tendencies (Reverse Bionator)

Indication: Developing Class III patterns (prognathic mandible or deficient maxilla) in early mixed dentition.
Design features: Modified to posture the mandible more posteriorly relative to the maxilla and/or to encourage maxillary development, sometimes paired with extraoral or maxillary expansion strategies.

Across variants, clinicians tailor incisal cants, bite planes, acrylic extensions, clasps, and labial bows to match arch forms and desired effects. The Bionator is often more streamlined than an Activator, and many practitioners prefer its speech-friendliness and wearability, especially for motivated children.

How the Bionator Works: Mechanisms of Action

1) Mandibular Posturing and Condylar Adaptation

The core mechanism is advancement of the mandible. When the lower jaw is gently held in a more forward position for sustained periods, several things can happen:

The temporomandibular joint (TMJ) adapts: condylar cartilage may remodel, and the glenoid fossa can undergo incremental changes, especially in growing patients.
Muscular patterns change: elevators and protruders of the mandible work in a new functional range, and head/neck posture can subtly shift.

While debates continue about the relative proportions of skeletal versus dental change, the consensus in clinical orthodontics is that functional appliances like the Bionator can enhance mandibular growth expression during the pubertal growth spurt and can reorient neuromuscular function in younger patients.

2) Dental Effects

Even when skeletal changes are sought, there are inevitably dentoalveolar effects:

Upper incisors often retrocline slightly due to labial bow engagement or reduced lip pressure against them.
Lower incisors may proclinate because the mandibular dentition is advanced and receives forward posturing forces.
Molar relationships tend to improve from Class II toward Class I as the lower arch moves forward and occlusal settling occurs.

Careful design can modulate these effects: adding shields, adjusting labial bows, or modifying acrylic contact areas to tip the balance toward skeletal corrections where possible.

3) Airway and Soft Tissue Considerations

A forward mandibular posture can increase the oropharyngeal airway space transiently. In some growing patients with mouth-breathing patterns or low tongue posture, Bionator wear is paired with myofunctional exercises and nasal breathing encouragement. The goal is not to “treat sleep apnea” (which requires medical diagnosis and multidisciplinary management) but to support healthier function that indirectly benefits craniofacial development.

Who Is a Candidate?

A Bionator is most often considered for growing patients with:

Class II malocclusion due to mandibular retrusion (lower jaw positioned back).
Increased overjet and sometimes protrusive upper incisors.
Mixed dentition (ages roughly 8–12) or early adolescent growth period (11–14), when growth modification has the greatest potential.
An open bite tendency (with a specific variant) linked to oral habits or unfavorable eruption patterns.
Mild to moderate crowding that may benefit from arch development strategies during growth.

Contraindications and Cautions

Noncompliance risk: Because the Bionator is removable, success hinges on wear time and cooperation. If consistent wear is unlikely, alternative strategies (e.g., Twin-Block, Herbst, or fixed appliances) might be superior.
Minimal growth remaining: In late adolescence or adulthood, skeletal change potential declines sharply; dental camouflage or surgical options might be more appropriate.
Marked skeletal discrepancies: Severe Class II or Class III cases may exceed the scope of functional appliances alone.
Temporomandibular disorders: Active joint pain or dysfunction requires cautious evaluation. Some clinicians avoid mandibular advancement appliances during acute TMJ episodes.

Clinical Process: From Consultation to Completion

1) Assessment and Records

Clinical exam: Facial profile, lip competence, breathing pattern, tongue posture, and oral habits.
Imaging: Panoramic radiograph; cephalometric radiograph to assess jaw relationships and growth vectors. In select cases, CBCT or airway imaging may be considered.
Dental models or intraoral scans: For appliance design.
Growth assessment: Hand-wrist radiographs or cervical vertebral maturation (CVM) stages may be used to estimate growth peak timing.

2) Appliance Design and Fabrication

The clinician prescribes the Bionator design, including:

Protrusive setting: How far forward the mandible is set (often a percentage of the patient’s maximum comfortable protrusion).
Vertical dimension: Bite opening to control eruption and influence facial height.
Auxiliaries: Labial bows, clasps, habit screens, or expansion screws in select cases.

A lab fabricates the device from an impression or digital scan. When the appliance is delivered, the orthodontist refines the fit, checks occlusal contacts, and instructs on insertion/removal.

3) Wear Protocol

There’s variation by clinician, but common recommendations include:

14–16 hours per day of wear, including overnight—the most critical block of time.
Remove for meals and brushing, unless otherwise instructed.
Speech practice: Reading aloud for 10–15 minutes a day can accelerate adaptation.
Myofunctional habits: Encourage nasal breathing, lips together at rest, tongue resting gently against the palate.

4) Follow-Up and Adjustments

Appointment intervals: Every 4–8 weeks, depending on phase and growth stage.
Adjustments: Trimming acrylic, adjusting bows or clasps, and modifying bite planes to guide eruption and fine-tune dental effects.
Progress checks: Monitoring overjet reduction, molar relationship shift, facial profile changes, and compliance.

5) Duration and Subsequent Phases

Active functional phase: Commonly 9–12 months, sometimes longer depending on goals and growth.
Retention/transition: After skeletal and functional objectives are achieved, many patients transition to fixed braces or aligners for detailed tooth positioning. Others may use retainers to consolidate functional gains.

Advantages of the Bionator

Growth Harnessing
It leverages a patient’s natural growth potential to improve jaw relationships, particularly during the pubertal growth spurt.
Airway and Function Awareness
The design promotes tongue-to-palate posture, encourages nasal breathing, and can support healthier orofacial function.
Removability and Hygiene
Since it’s not bonded to teeth, oral hygiene is easier than with fixed functional appliances. The device itself is cleaned separately.
Comfort and Speech
It’s relatively slim compared to some monobloc appliances. After a short adaptation period, many patients speak reasonably well with it in place.
Customizability
The Bionator can be tailored for Class II correction, open bite control, or even to assist with mild Class III tendencies in specific designs.

Limitations and Challenges

Compliance-Sensitive
No appliance works in the case, in the locker, or under the pillow. The Bionator’s success is directly proportional to wear time.
Variable Skeletal Response
Not every patient exhibits notable skeletal change. Dental compensation (like lower incisor proclination) may dominate in some cases.
Finite Growth Window
Once the growth spurt passes, skeletal modulation becomes less predictable. Adult use is typically limited to dentoalveolar effects.
Speech and Saliva
Early on, lisping and increased salivation can occur. Most patients adapt within days to weeks with practice.
Relapse Risk Without Consolidation
Functional changes need retention. Without proper follow-up (e.g., braces, retainers, or ongoing myofunctional habits), some relapse is possible.

Practical Tips for Patients and Parents

Commit to a routine: Put the Bionator in after school, keep it in through the evening and overnight. Build habits around it.
Use a case: When not in the mouth, store it in a ventilated hard case. Never wrap it in a napkin—this is how appliances get lost.
Clean daily: Rinse after removal; brush with a soft brush. Avoid very hot water (it can distort acrylic). Use non-abrasive cleaners; ask your orthodontist about occasional use of effervescent tablets.
Practice speaking: Read aloud or sing softly for a few minutes each day with the appliance in. Adaptation accelerates with intentional practice.
Watch the habits: Thumb sucking, persistent pacifier use, or tongue thrust can undermine results. Pair Bionator therapy with habit cessation and myofunctional guidance as advised.
Track progress: Photos every 4–6 weeks—profile and smile—can motivate patients as they see changes accumulate.

Comparison With Other Functional Appliances

Bionator vs. Twin-Block

Twin-Block: Two separate bite blocks (upper and lower) with inclined planes that interlock to posture the jaw forward.
Pros: Excellent patient acceptance, robust Class II correction, good control over vertical dimension.
Bionator: Single monobloc unit, often slimmer and more “airway friendly” in design philosophy.
Takeaway: Both are effective when worn; choice often rests on clinician preference, case specifics, and patient adaptability.

Bionator vs. Herbst (Fixed)

Herbst: A fixed telescopic appliance that holds the mandible forward 24/7—no compliance required for insertion.
Pros: Predictable wear, strong dentoalveolar and some skeletal effects in growing patients.
Cons: More appliance breakage risk and hygiene challenges; bulk can irritate cheeks early on.
Bionator: Requires cooperation, but easier for hygiene and often gentler adaptation.
Takeaway: Herbst is powerful for patients unlikely to wear a removable device; Bionator is great for motivated wearers.

Bionator vs. Frankel (FR-2, FR-3)

Frankel: Tissue-borne functional regulators with buccal shields to alter the soft tissue envelope.
Pros: Strong emphasis on perioral muscle rebalancing and arch development.
Cons: Bulkier; longer adaptation for speech.
Bionator: Less bulky with a similar functional philosophy.
Takeaway: Frankel may be chosen for significant soft tissue pattern issues; Bionator for a balanced mix of function and comfort.

What Results Can You Expect?

Class II Correction

Typical goals include:

Reducing overjet (e.g., from 8–10 mm down to 3–4 mm).
Improving molar relationship toward Class I.
Harmonizing facial profile, often softening a convex profile by advancing the chin point and supporting lip balance.

Skeletal vs. Dental Contributions

Skeletal changes: Enhanced mandibular growth expression, small increases in mandibular length, and localized joint remodeling—greatest in peak growth windows.
Dental changes: Upper incisor retroclination and lower incisor proclination contribute substantially to overjet reduction. Careful design can moderate undesired flaring.

Stability

Short-term: Often excellent if wear is consistent and the functional phase is completed.
Long-term: Best when followed by comprehensive finishing (braces/aligners) and retention. Myofunctional habits (nasal breathing, tongue posture) play a major role in stability.

Managing Side Effects and Troubleshooting

Soreness or muscle fatigue: Common initially; usually resolves within a week. Gradual ramp-up of wear can help.
Speech issues: Practice is key. If persistent, the clinician can trim acrylic or adjust contours.
Excess saliva: Normal at first; the body adapts.
Lower incisor flaring: Modify labial bows, add torque-control strategies, or time the transition to fixed appliances to control incisor position.
Breakage: Avoid chewing gum or hard candies with the appliance in. Promptly report cracks; small repairs are often straightforward.

Evidence Snapshot and Clinical Consensus

Functional appliances have been studied for decades. While methodologies vary, several themes emerge across reviews and clinical literature:

Effectiveness in growing patients: Functional appliances, including the Bionator, can reduce overjet and improve sagittal jaw relationships, especially when timed with the pubertal growth spurt.
Combination of effects: Improvements come from both skeletal adaptation and dental changes; the ratio depends on age, growth status, and appliance design.
Comparable to peers: Bionator outcomes for Class II correction are broadly comparable to the Twin-Block and other removable functional appliances when compliance is high.
Retention matters: Without stabilization (finishing and retainers) and ongoing healthy function, some relapse is expected.

Because study designs, ages, and protocols differ, definitive “superiority” claims are rare and often unhelpful. The best appliance is the one matched to the patient, timed to growth, and worn as prescribed.

Frequently Asked Questions

Will it hurt?

You may feel muscle soreness and a sense of “stretch” for a few days. Cheeks and tongue might get minor irritations that usually resolve as you adapt and as your orthodontist smooths or trims acrylic. Persistent pain isn’t typical—report it.

How long do I need to wear it each day?

Most protocols aim for 14–16 hours daily, including overnight. More continuous wear usually means faster and more stable progress.

Can I eat with it in?

Usually no. Remove it for meals to prevent damage and make eating comfortable (unless your orthodontist gives different instructions for your specific design).

Will it change my face?

The goal is a more balanced profile—reducing the convexity of a retrusive lower jaw. Changes are usually subtle but noticeable in side-by-side photos after several months.

What if I forget to wear it?

Consistency is crucial. Missing days slows progress and can cause minor regressions. Develop routines and consider habit trackers or phone reminders.

Is it better than braces?

It’s not an either/or. The Bionator addresses jaw relationships and function during growth. Braces or aligners commonly follow to fine-tune tooth positions and bite detail.

Can adults use a Bionator?

In adults, skeletal changes are limited. A Bionator might help with minor functional training or as a transitional device, but comprehensive correction often relies on dental camouflage or surgical orthodontics in significant cases.

The Role of Myofunctional Training and Habit Correction

A standout feature of the Bionator philosophy is the integration of function:

Nasal breathing: Chronic mouth breathing can affect facial growth patterns. Encouraging nasal airflow (and addressing ENT issues when indicated) supports treatment.
Tongue posture: A tongue that rests on the palate supports maxillary arch form and stabilization of anterior bite.
Swallowing pattern: A mature swallow without tongue thrust helps prevent anterior open bite relapse.
Posture: Head and cervical posture can influence mandibular position and orofacial muscle tone.

Some clinicians co-manage with speech-language pathologists, myofunctional therapists, or ENT specialists to address underlying contributors to malocclusion. The Bionator can be a hardware anchor for these software changes.

Realistic Expectations and Shared Responsibility

The Bionator succeeds when patient, parent, and provider work in synchrony:

The patient wears it consistently, keeps it clean, and practices speech and functional habits.
The parent supports routines, celebrates progress, and ensures the appliance isn’t lost or damaged.
The orthodontist times treatment to growth, designs the device carefully, and makes iterative adjustments based on response.

When this triangle holds, the Bionator can meaningfully shift a developing Class II toward a more harmonious occlusion and facial balance.

Care and Maintenance Checklist

Daily: Rinse after removal; brush gently with cool water and a soft brush.
Weekly: Soak (if recommended) in an appropriate cleaning solution; avoid harsh chemicals.
Always: Store in a protective case when out of the mouth; keep away from pets and heat sources.
Report: Cracks, loose wires, sore spots, or sudden bite changes promptly.

Case Course—What a Typical Timeline Might Look Like

Month 0: Records and appliance delivery. Speech feels different; salivation increases.
Weeks 1–2: Adaptation phase; wear time ramps to full prescription. Minor adjustments smooth edges and refine fit.
Month 3: Noticeable overjet reduction; improved lip competence at rest.
Month 6: Molar relationship improving toward Class I; profile appears less convex.
Month 9–12: Functional goals largely achieved. Decision point: transition to fixed appliances/aligners for finishing or begin retention if alignment is already satisfactory.
Beyond: Retainers and periodic checks; reinforcement of nasal breathing and tongue posture.

When Bionator Is Part of a Bigger Plan

Modern orthodontics often integrates the Bionator with other modalities:

Rapid maxillary expansion (RME) prior to or during Bionator therapy if transverse deficiency exists.
Fixed appliances after the functional phase for precise alignment and torque control.
Elastics or finishing bends to perfect occlusion.
Retention with clear retainers or Hawley-type appliances, sometimes incorporating bite planes to maintain vertical control.

This phased approach acknowledges that while a Bionator can set the jaw relationship and functional pattern on a better course, fine detailing is usually accomplished with braces or aligners.

Bottom Line

The Bionator appliance is a time-tested, versatile functional device that leverages growth and function to address common developmental bite problems—especially Class II malocclusions associated with a retrusive mandible. Its strengths lie in customization, airway-aware design, and patient comfort relative to some bulkier functional appliances. Like all removable devices, it lives or dies by compliance. In the right patient, at the right time, and with consistent wear, a Bionator can significantly reduce overjet, improve molar relationships, and harmonize the facial profile, paving the way for stable long-term results when coupled with appropriate finishing and retention.

If you’re considering a Bionator—whether for your child or yourself—speak with an orthodontist about the timing, design specifics, and how it fits into a comprehensive, individualized treatment plan.
